MSI GeForce RTX 4080 VENTUS 3X - OC Edition - graphics card - GeForce RTX 4080 - 16 GB
Description
The MSI RTX 4080 16G VENTUS 3X OC delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It's powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
- New Streaming Multiprocessors
- Fourth-Gen Tensor Cores
- Third-Gen RT Cores
- Up to 2x ray tracing performance
- DisplayPort x 3 (v1.4a)
- HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
- 16GB GDDR6X video memory
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Product Features

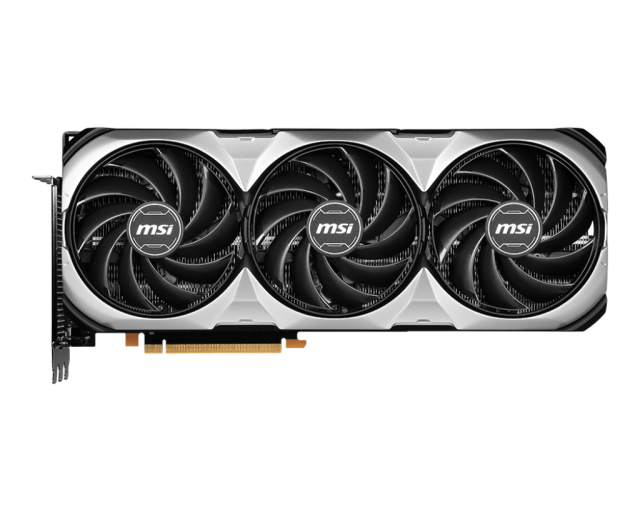

- Revolutionary triple-fan thermal
Three fans on a huge heatsink ensures a cool and quiet experience. - Airflow Control
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it's needed for maximum cooling. - Metal backplate

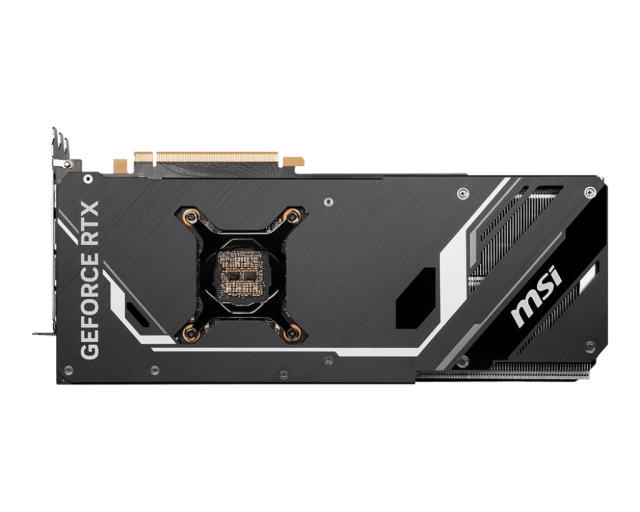

A sturdy brushed aluminum backplate features a flow-through design that provides additional ventilation. - Effective thermal padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components. - Double ball bearing
The fan core spins TORX FAN for years of intense and lengthy gaming sessions. - 2 oz copper
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability. - Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage. - Sheet-metal anti-bending
A sheet-metal anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
General
Device Type: Graphics card
Bus Type: PCI Express 4.0
Graphics Engine: NVIDIA GeForce RTX 4080
Boost Clock: 2535 MHz
CUDA Cores: 9728
VR Ready: Yes
Max Resolution: 7680 x 4320
Max Monitors Supported: 4
Interfaces: 3 x DisplayPort (version 1.4a) ¦ HDMI
API Supported: OpenGL 4.6, DirectX 12 Ultimate
Features: Airflow Control technology, MSI Zero Frozr technology, fuse protection, Nvidia Studio, Torx 4.0 Fans, NVIDIA Reflex, Core Pipe, Nvidia Broadcast, metal backplate, nickel plated copper base, NVIDIA Ada Lovelace GPU technology, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, NVIDIA DLSS 3
Memory
Size: 16 GB
Technology: GDDR6X SDRAM
Memory Speed: 22.4 Gbps
Bus Width: 256-bit
System Requirements
Required Power Supply: 750 W
Additional Requirements: 16 pin PCI Express power connector
Miscellaneous
Power Consumption Operational: 320 Watt
Software Included: MSI Afterburner, MSI Center
Compliant Standards: DisplayPort 1.4a
Width: 2.5 in
Depth: 12.7 in
Height: 5.4 in
Weight: 3.51 lbs
Manufacturer Warranty
Service & Support: Limited warranty - 3 years
Details
Weight: 4.85g
Dimensions (LxWxH): 16.14 x 10.94 x 3.78 mm
